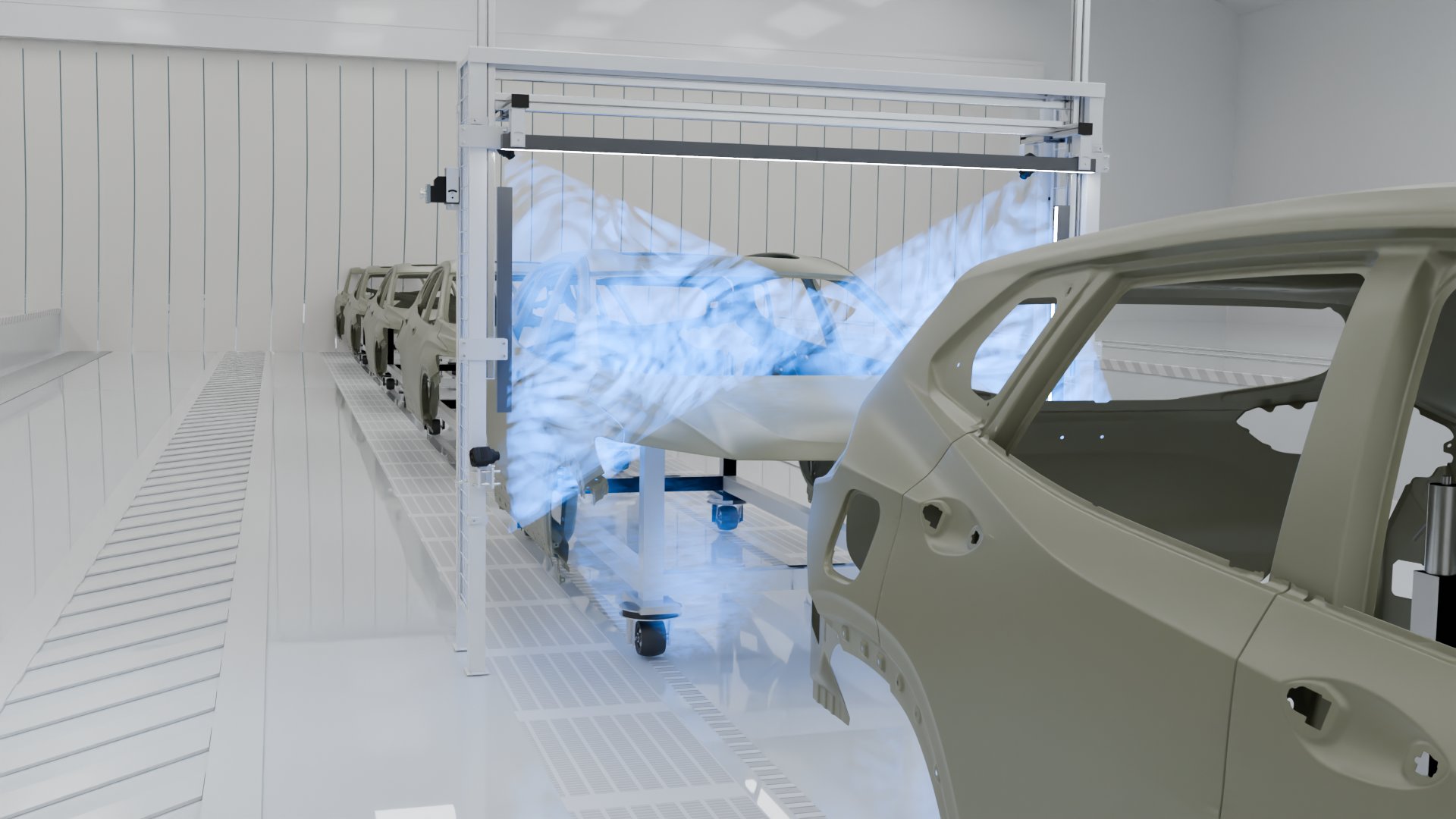

Carro recebendo cobertura de primer em cabine de pintura numa linha robóticaVision King inspecting the automotive body lineby combiningandComputer VisionAIEmpower yourQuality

Vision King – Primer & E-coat

Technology Description

The main objective is to identify defects and imperfections on Class A surfaces, freshly painted with primer or e-coat, such as:

High Spot

Bump in the primer surface

Hair

Hair trapped in the primer surface

Dirt

Dirt inclusion in the primer surface

Crater

Crater in the primer surface

Lint

Lint trapped in the primer surface

Computer vision applied to the inspection of surfaces prepared with primer or e-coat has become a fundamental solution to ensure quality in vehicle manufacturing processes. It prevents defective surfaces from advancing along the production line or reaching the end customer. The Vision King system utilizes high-resolution cameras combined with advanced image processing algorithms to detect defects, irregularities, and specific surface characteristics that are difficult to identify with the naked eye.

Car body surface after primer application

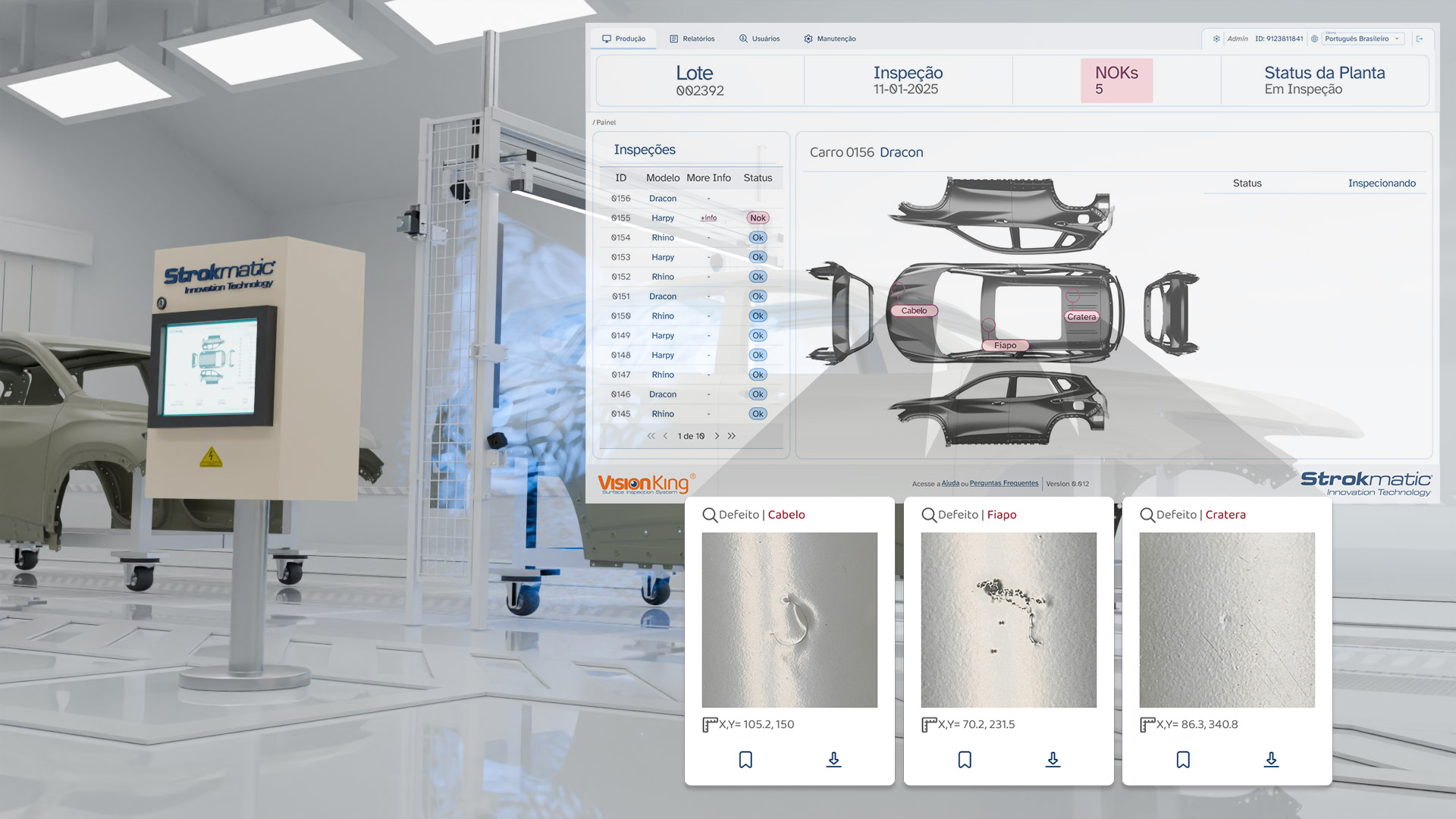

Vision King inspection screens for primer and e-coat
1
2
3
4
5
6
7
8
Automotive plant with Strokmatic inspection on the production line
1

Vision King – Coiled Steel and Blanks:

Detects metallurgical defects while the decoils progrides allowing automation to cut defect free blanks.

2

Vision King – Metal Stamping

Detects defects in class A surface right after press operation.

3

Spot Fusion:

Detects weld defects using weld controller data, it can be paired with machine vision to inspect weld aesthetics.

4

Vision King – Laser Brazing Inspection

Visual inspection of Laser Brazing process allowing immediate trobleshooting.

5

Vision King – Adhesive and Sealant

Secure and imediate inspection system that allows operators only dadicate on fixing defects.

6

Vision King – E-coat and Primer

Detects contaminants and defects in e-coated or primed surface allowing operation to focus in fixes before advancing in the production process.

7

Vision King – Base Coat and Varnish

System deditated to inspect for defect on painted surface.

8

Vision King – Final Assembly

Inspects defects in real-time such as missing parts and misalignments under the car.

Technologies and Techniques Used in Inspection

Cameras and
Sensors

Processing

Artificial
Intelligence

Real-Time
Systems

Advantages

  • 100% automated inspection.

  • High precision and consistency in real-time defect detection.

  • High operating speed, keeping pace with the production line without impacting cycle time

  • Immediate identification and localization of defects

  • Reduction or elimination of manual inspection, optimizing resources and minimizing operational errors

  • Increased safety and ergonomics, reducing repetitive strain and exposure to risks

  • Full traceability of each painted body, ensuring complete process control.

  • Standardization of quality and increased production efficiency

  • Contribution to Industry 4.0 by integrating smart technology into the manufacturing process
