Robo aplicando selante na parte de baixo de um carro pronto para inspeção de adesivo ou selante na linha de produção automatizadaVision King inspecting adhesive and sealer beadsby combiningandComputer VisionAIEmpower yourQuality

Vision King – Adhesive & Sealer

Technology Description

The main objective is to identify defects and imperfections in the three-dimensional application of Sealants and Adhesives applied by the automated line:

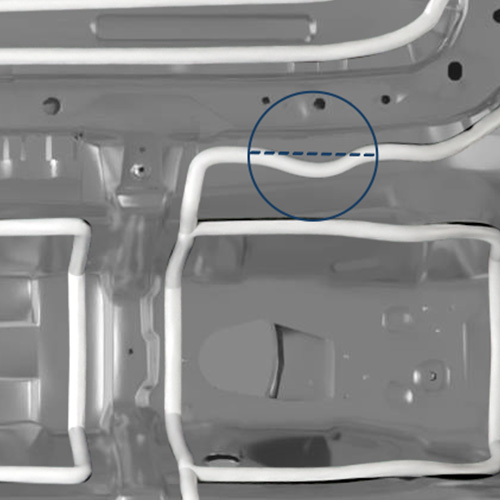

Position

Position check of the adhesive and sealer bead

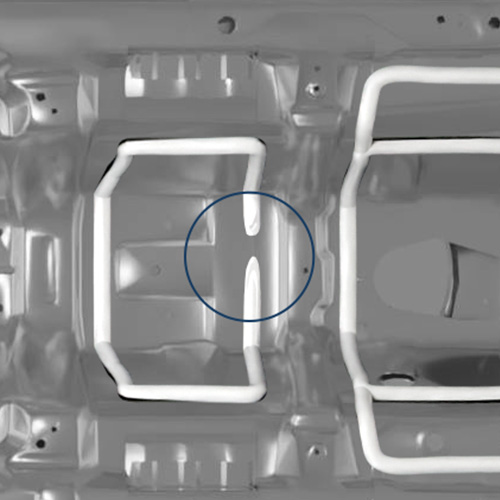

Continuity

Continuity check of the adhesive and sealer bead

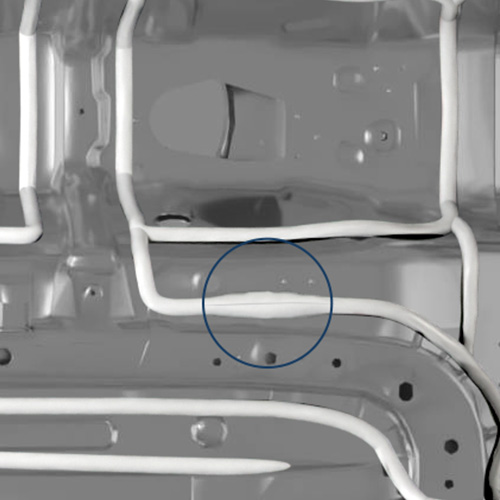

Width

Width check of the adhesive and sealer bead

Computer vision applied to the inspection of sealants and adhesives has become an essential solution to guarantee quality in car body manufacturing processes. Vision King uses cameras and image processing algorithms to detect lacks, excesses, irregularities, and specific characteristics of the application of sealants and adhesives that are difficult to identify with the naked eye.

Adhesive and sealer bead applied to the car body

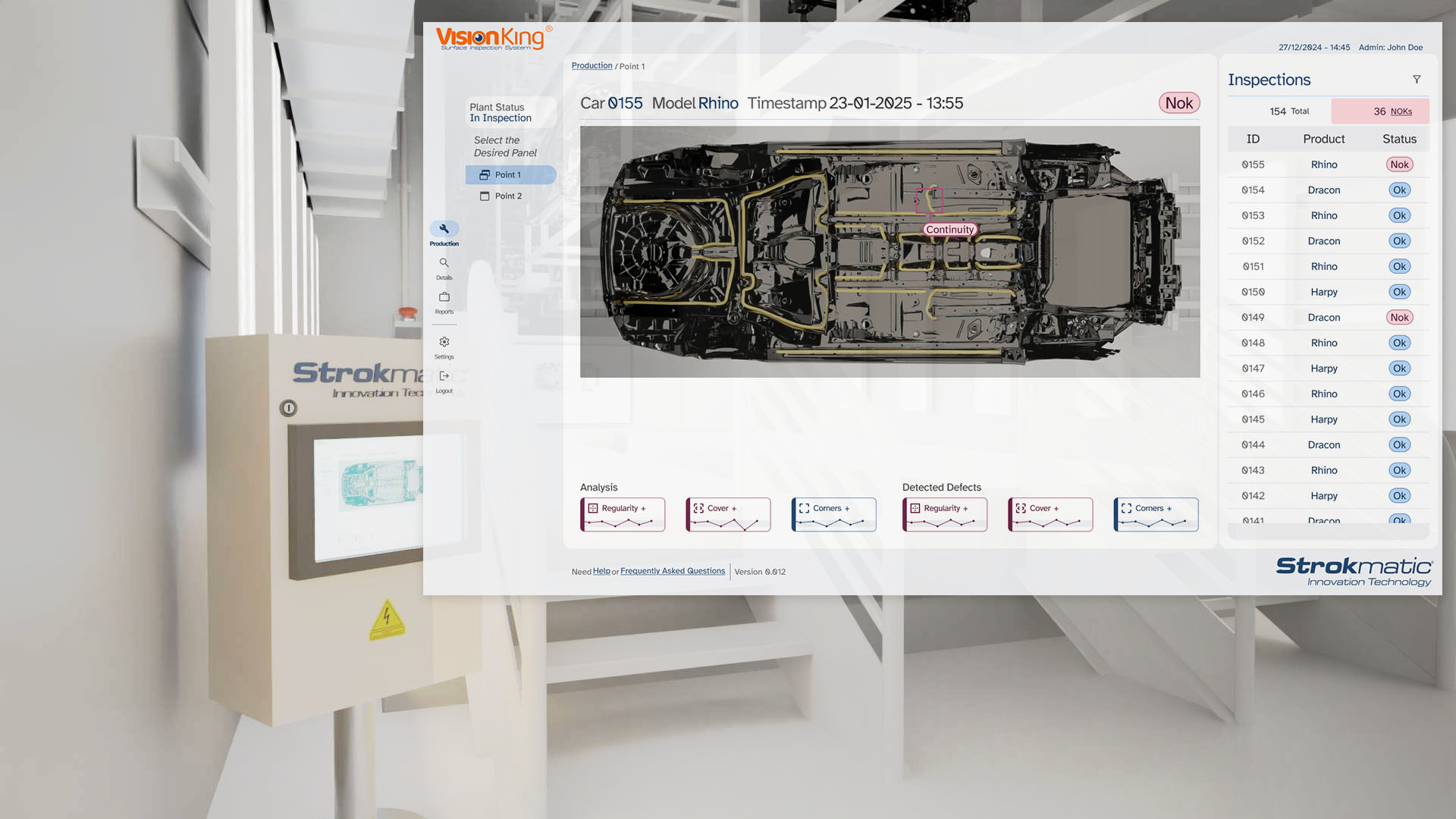

Vision King screens inspecting adhesive and sealer beads

Adhesive & Sealer on Production Line

1
2
3
4
5
6
7
8
Automotive plant with Strokmatic inspection on the production line
1

Vision King – Coiled Steel and Blanks:

Detects metallurgical defects while the decoils progrides allowing automation to cut defect free blanks.

2

Vision King – Metal Stamping

Detects defects in class A surface right after press operation.

3

Spot Fusion:

Detects weld defects using weld controller data, it can be paired with machine vision to inspect weld aesthetics.

4

Vision King – Laser Brazing Inspection

Visual inspection of Laser Brazing process allowing immediate trobleshooting.

5

Vision King – Adhesive and Sealant

Secure and imediate inspection system that allows operators only dadicate on fixing defects.

6

Vision King – E-coat and Primer

Detects contaminants and defects in e-coated or primed surface allowing operation to focus in fixes before advancing in the production process.

7

Vision King – Base Coat and Varnish

System deditated to inspect for defect on painted surface.

8

Vision King – Final Assembly

Inspects defects in real-time such as missing parts and misalignments under the car.

Technologies and Techniques Used in Inspection

Cameras and
Sensors

Processing

Artificial
Intelligence

Real-Time
Systems

Advantages

  • 100% automated inspection

  • High precision and consistency in real-time defect detection.

  • High operating speed, keeping pace with the production line without impacting cycle time

  • Immediate identification and localization of defects

  •   Reduction or elimination of manual inspection, optimizing resources and minimizing operational errors

  • Increased safety and ergonomics, reducing repetitive strain and exposure to risks

  • Full traceability of the vehicle bodies, ensuring complete process control

  • Standardization of quality and increased production efficiency

  • Contribution to Industry 4.0 by integrating smart technology into the manufacturing process
